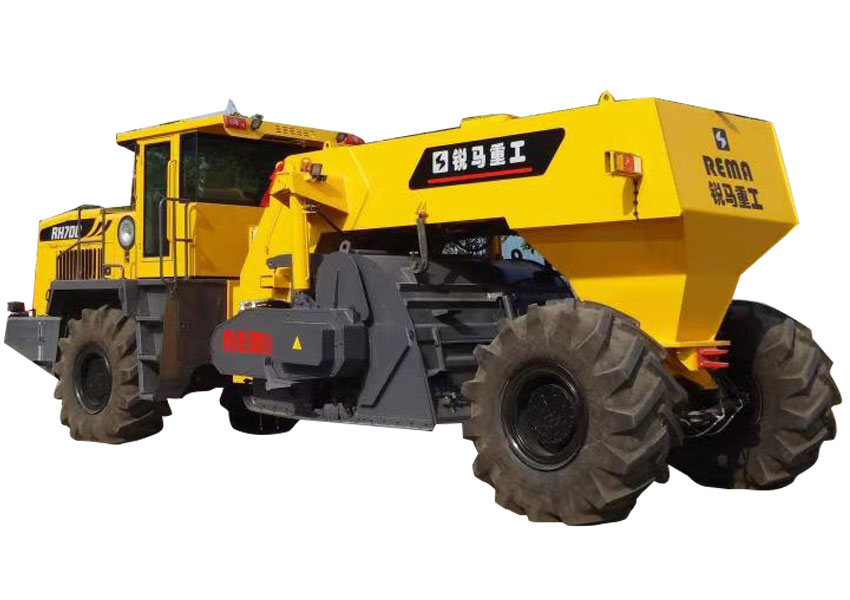

RH700 cold recycler Main technical parameters
|
Item |
Unit |
Data |
|
|
Engine |
Model |
Weichai Power WP17G700 |
|
|
Exhaust emissions category |
China III |
||
|
Rated power |
kW / PS |
515 / 700 |
|
|
Rated power |
kW / PS |
515 / 700 |
|
|
Rated speed |
rpm |
1900 |
|
|
Maximum torque |
N.m |
3000 |
|
|
Speed |
I gear（Milling speed） |
m / min |
9 |
|
II gear （Milling speed） |
m / min |
32 |
|
|
III gear （Travel speed） |
km / h |
14 |
|
|
Maximum width |
mm |
2100 |
|
|
Maximum mix depth |
mm |
320 |
|
|
Minimum side distance |
mm |
380 |
|
|
Rotor speed |
8 Electronic gears |
||
|
Minimum ground clearance |
mm |
400 |
|
|
Climbing ability |
≥ |
40% |
|
|
Front tire / Rear tire |
23.5-25 / 23.5-25 |
||
|
Fuel tank |
L |
780 |
|
|
Maximum operating weight |
kg |
36000 |
|
|
Minimum weight of complete machine |
kg |
29000 |
|
|
Machine dimension（Long × wide ×high） |
mm |
9860×3180×3390 |
|
